How FPGAs Work & Why You’ll Need One

Contents

Have you ever wondered how FPGA technology powers the devices you use every day? Welcome to the fascinating world of Field-Programmable Gate Arrays, or FPGAs for short. These powerful and versatile devices have become increasingly important in today’s fast-paced technology landscape. In this article, we aim to demystify the inner workings of FPGAs, showcasing their practical applications and benefits.

From signal processing to industrial automation, FPGAs have made a significant impact across various industries. By the end of this article, you’ll have a thorough understanding of how FPGAs work and why they might be an essential addition to your next project or product development.

What is an FPGA?

At its core, an FPGA is a semiconductor device. It’s comprised of configurable logic blocks and interconnects, which can be programmed to implement various digital circuits. But what sets FPGAs apart from other programmable devices, like ASICs or microcontrollers? Let’s dive deeper.

Comparison with Other Programmable Devices

FPGAs are often compared to Application-Specific Integrated Circuits (ASICs) and microcontrollers. ASICs are custom-made for specific tasks, providing optimized performance but lacking in flexibility. Microcontrollers, on the other hand, are general-purpose devices, often used for simpler tasks and controlled via software.

Where FPGAs shine is their ability to adapt to various tasks while maintaining high performance. They can be reconfigured on-the-fly, making them ideal for applications that require flexibility and rapid development cycles.

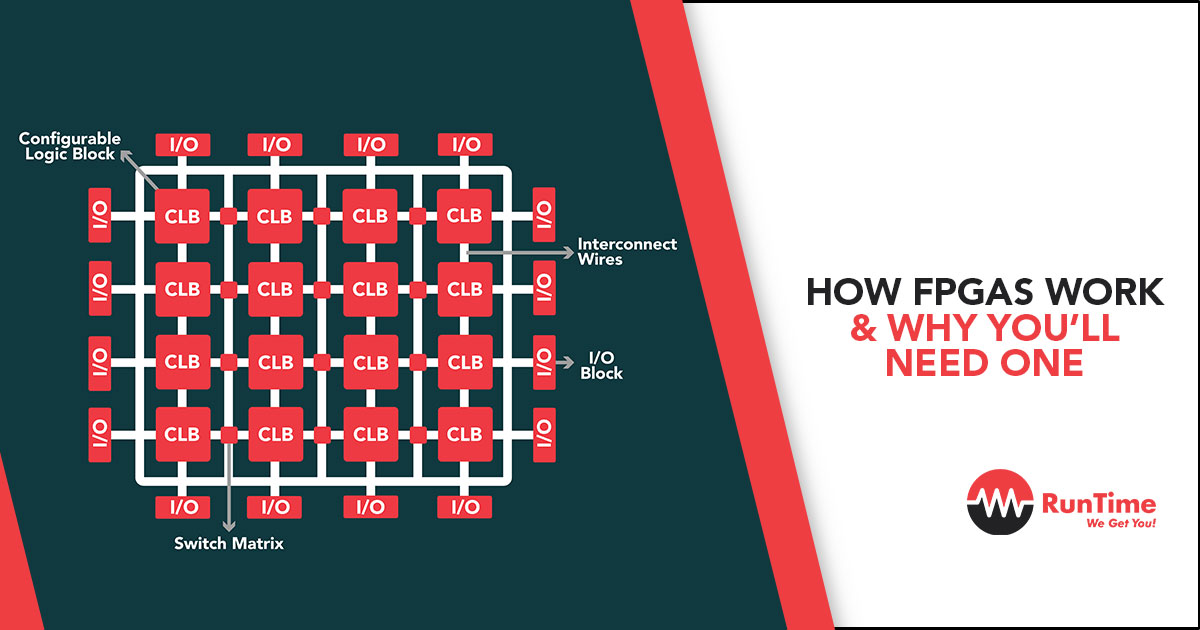

Main Components of FPGAs

Now that we’ve established what FPGAs are and how they compare to other devices, let’s explore their main components.

Logic Blocks

Logic blocks are the fundamental building blocks of an FPGA. They contain programmable logic elements, which can be configured to perform various digital functions, such as AND, OR, and XOR gates.

Interconnects

Interconnects are the “wires” that link logic blocks together. They form a programmable routing matrix, allowing for flexible connections between different logic blocks, and ultimately defining the functionality of the FPGA.

I/O Blocks

Input/Output (I/O) blocks enable the FPGA to communicate with external devices, such as sensors, switches, or other integrated circuits. They’re configurable to support various voltage levels, standards, and protocols.

Configuration Memory

Configuration memory stores the programming data that defines how the FPGA’s logic blocks and interconnects are configured. When the FPGA is powered on, this data is loaded into the device, allowing it to perform its intended functions.

How do FPGAs Work?

Understanding how FPGAs work involves diving into the programming process, configuration, and operation of these versatile devices. Let’s break it down step by step.

Programming Process

Hardware Description Language (HDL)

First, FPGA designs are described using a Hardware Description Language (HDL), such as Verilog or VHDL. These languages help define the behavior of digital circuits, allowing engineers to describe complex designs with relative ease.

Compilation and Synthesis

Next, the HDL code is compiled and synthesized into a gate-level netlist. This process translates the high-level design into a set of interconnected gates and flip-flops, creating a blueprint of the digital circuit.

Place and Route

During the FPGA routing and placement stage, the netlist is mapped onto the FPGA’s available resources, including logic blocks, interconnects, and I/O blocks. This process optimizes the layout for performance, power, and area constraints.

Bitstream Generation

Finally, a bitstream is generated from the placed and routed design. This binary file contains the configuration data for the FPGA, which will dictate how its logic blocks and interconnects are set up to implement the desired functionality.

FPGA Configuration

Loading the Bitstream

When the FPGA is powered on, the bitstream is loaded into the device’s configuration memory. This can be done through various methods, such as on-chip non-volatile memory, external memory, or a dedicated configuration device.

Configuring the Logic Blocks and Interconnects

Once the bitstream is loaded, the configuration data configures the FPGA’s logic blocks and interconnects to implement the desired digital circuit. This process effectively “programs” the FPGA to perform its intended functions.

FPGA Operation

Digital Logic Implementation

With the FPGA configured, it can now perform its intended tasks. The interconnected logic blocks and interconnects form a digital circuit, which processes input signals, performs computations, and generates output signals as needed.

Parallel Processing Capabilities

FPGAs excel at parallel processing, as they can implement multiple digital circuits that operate independently and concurrently. This makes them ideal for applications requiring high throughput and low latency.

Reconfigurability and Adaptability

One of the key advantages of FPGAs is their reconfigurability. If the design needs to be updated or changed, the FPGA can be reprogrammed with a new bitstream, allowing for rapid iteration and adaptation to evolving requirements.

Applications of FPGAs

FPGAs have found their way into a wide range of applications, thanks to their flexibility, performance, and adaptability. Let’s explore some of the most common use cases for these versatile devices.

Signal Processing and Data Acquisition

FPGAs excel at processing large volumes of data in real-time. They’re often used for signal processing tasks, such as filtering, modulation, and demodulation in applications like radar, sonar, and medical imaging.

Industrial Automation and Control Systems

From robotics to machine vision, FPGAs play a crucial role in modern industrial automation and control systems. Their parallel processing capabilities and low-latency performance make them ideal for tasks requiring high-speed data processing and decision-making.

Networking and Telecommunications

In networking and telecommunications, FPGAs are used for tasks such as packet processing, routing, and encryption. They provide the necessary flexibility to adapt to evolving standards and protocols, making them an essential component in today’s connected world.

Cryptocurrency Mining

Thanks to their parallel processing capabilities and power efficiency, FPGAs have become popular for cryptocurrency mining. They can be programmed to perform the complex mathematical calculations required for mining tasks, while consuming less power than traditional GPUs or ASICs.

Scientific Research and High-Performance Computing

FPGAs have found a place in scientific research and high-performance computing, where their ability to perform parallel processing and reconfigurability can be leveraged for tasks such as simulations, data analysis, and algorithm acceleration.

Prototyping and Hardware Development

Finally, FPGAs are commonly used for prototyping and hardware development, allowing engineers to rapidly iterate and test new designs before committing to costly custom ASICs or other manufacturing processes. This accelerates the development cycle and reduces time-to-market for new products.

FPGA Benefits and Advantages

There are several key benefits and advantages that make FPGAs an attractive choice for various applications. Let’s dive into some of the most notable perks these devices have to offer.

Flexibility and Reconfigurability

FPGAs can be reprogrammed to perform different tasks on-the-fly, offering unparalleled flexibility. This allows them to adapt to changing requirements and standards, extending their lifespan and usefulness in many applications.

Rapid Prototyping and Development

With FPGAs, engineers can quickly iterate on designs and test new concepts without the need for expensive custom silicon. This accelerates the development process and reduces time-to-market for new products and innovations.

Customizable and Scalable

FPGAs can be customized to meet specific application requirements, allowing for tailored solutions that maximize performance and efficiency. Furthermore, their inherent scalability makes them suitable for a wide range of projects, from small-scale prototypes to large-scale production deployments.

Power Efficiency

Compared to other programmable devices, FPGAs often provide better power efficiency, making them an attractive choice for applications where energy consumption is a concern. This is particularly important in battery-powered devices or energy-sensitive environments.

Long-Term Cost-Effectiveness

While FPGAs can have higher upfront costs compared to some alternatives, their long-term cost-effectiveness becomes apparent when considering factors such as reduced development time, adaptability, and power efficiency. Over time, these benefits can result in significant cost savings for businesses and projects.

Choosing the Right FPGA

Selecting the ideal FPGA for your project can be a complex task. It’s essential to consider various factors and evaluate the offerings from different vendors. Let’s discuss some key aspects to keep in mind.

Factors to Consider When Selecting an FPGA

Performance Requirements

Consider the performance requirements of your application, such as processing speed, bandwidth, and latency. Choose an FPGA that can meet or exceed these requirements while maintaining power efficiency and cost-effectiveness.

Power Consumption

Power consumption is crucial in many applications, particularly in battery-powered devices or energy-sensitive environments. Evaluate the power requirements of your project and select an FPGA that meets your needs without compromising on performance.

Budget and Cost Considerations

While FPGAs can offer long-term cost savings, upfront costs can be a concern. Make sure to factor in the total cost of ownership, including development tools, IP licensing, and support, when choosing an FPGA for your project.

Vendor Support and Ecosystem

Strong vendor support and a comprehensive ecosystem of development tools, IP cores, and reference designs can greatly simplify the FPGA development process. Choose a vendor with a proven track record of support and a robust ecosystem to ensure a smoother development experience.

Popular FPGA Vendors and Their Product Lines

Xilinx

Xilinx is a leading FPGA vendor, offering a wide range of devices, including the popular Spartan, Artix, Kintex, and Virtex series. These FPGAs cater to various performance, power, and cost requirements, making them suitable for a diverse set of applications.

Intel (Altera)

Intel, through its acquisition of Altera, offers a competitive range of FPGAs, including the Cyclone, Arria, and Stratix series. These devices are known for their performance and power efficiency, making them a popular choice in many industries.

Lattice Semiconductor

Lattice Semiconductor focuses on low-power, small form-factor FPGAs, such as the iCE, MachXO, and ECP families. These devices are ideal for applications requiring minimal power consumption and a compact footprint.

Microchip (Microsemi)

Microchip, through its acquisition of Microsemi, offers a range of FPGAs, including the low-power, non-volatile IGLOO and ProASIC families, as well as the high-reliability RTG4 series for radiation-tolerant applications. These FPGAs cater to specific niche requirements and markets.

Conclusion

In this article, we’ve explored the inner workings, applications, and benefits of FPGA technology. From signal processing to prototyping, FPGAs have proven to be an essential component in various industries due to their flexibility, reconfigurability, and performance.

We encourage you to consider incorporating FPGAs into your personal and professional projects. As an expert in engineering recruitment, we’re here to support you in your journey to harness the power of FPGA technology. Explore our website to learn more about how we can help you find the right opportunities and resources in this exciting field.

With FPGAs, the possibilities are endless. It’s time to unleash your creativity and unlock the true potential of these versatile devices.
