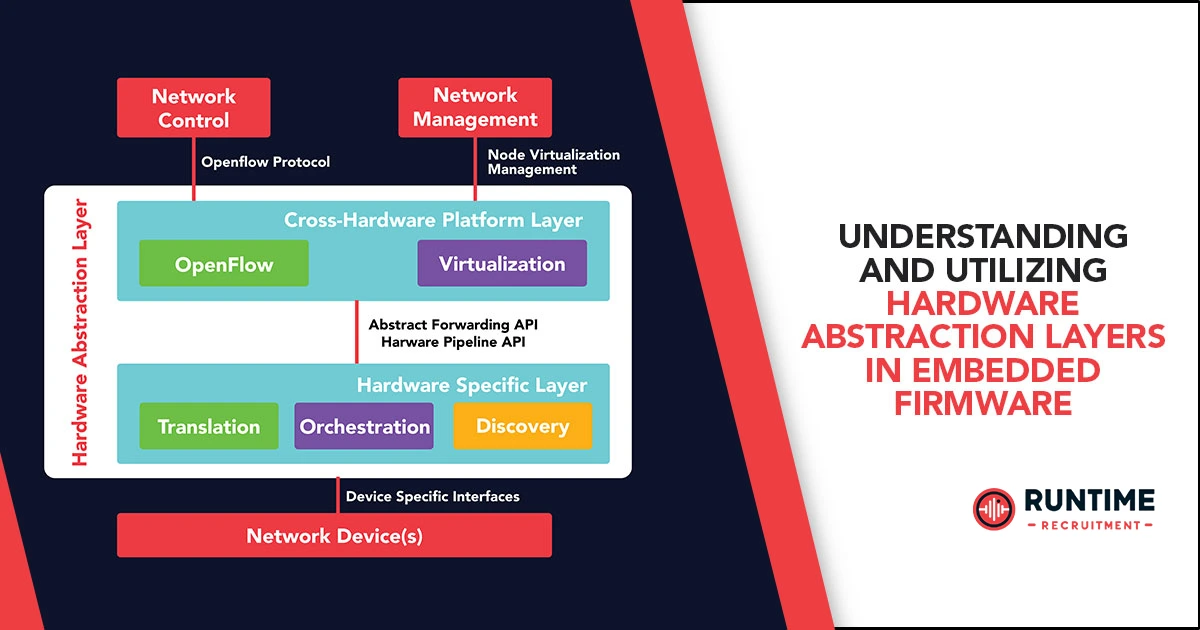

Understanding and Utilizing Hardware Abstraction Layers (HAL) in Embedded Firmware

Introduction

In the world of embedded systems, where precision and performance are paramount, firmware development can be a daunting task. Embedded firmware engineers often write low-level code to interface with hardware peripherals, which can lead to tightly coupled code, making it difficult to maintain, test, and port across different platforms. This is where Hardware Abstraction Layers (HAL) come into play. HAL is a critical concept that enables developers to create more modular, reusable, and portable code, significantly reducing the complexity of firmware development.

In this article, we’ll explore what HAL is, why it’s essential in embedded firmware, how to implement it effectively, and some best practices for utilizing HAL in your projects.

What is Hardware Abstraction Layer (HAL)?

A Hardware Abstraction Layer (HAL) is a layer of software that abstracts the hardware-specific details of a microcontroller or processor, providing a uniform interface for the application code. The primary goal of HAL is to decouple the application code from the underlying hardware, allowing the same code to run on different hardware platforms with minimal changes.

At its core, HAL provides a set of standardized APIs that abstract the functionality of hardware peripherals such as timers, UART, GPIO, ADC, and more. These APIs hide the complexity of direct hardware manipulation, allowing developers to focus on the application logic rather than the intricacies of hardware configuration.

The Importance of HAL in Embedded Firmware Development

The use of HAL in embedded firmware development offers several key advantages:

Portability: HAL enables code to be more portable across different hardware platforms. By abstracting hardware-specific details, the same application code can be reused on different microcontrollers with minimal modifications.
Modularity: HAL promotes modularity by separating hardware-specific code from the application logic. This separation makes the codebase easier to understand, maintain, and test.
Maintainability: With HAL, hardware changes require only updates to the abstraction layer, leaving the application code untouched. This makes it easier to maintain and extend the firmware as hardware evolves.
Testability: HAL allows for better testability of embedded systems. By abstracting hardware interactions, it’s possible to create mock implementations of the HAL APIs for unit testing, enabling thorough testing of the application logic in isolation from the hardware.
Scalability: HAL facilitates scalability by allowing developers to add or modify hardware peripherals without impacting the application code. This is particularly useful in large projects where multiple teams work on different aspects of the system.

Implementing HAL: A Step-by-Step Guide

Implementing a HAL involves designing a set of APIs that provide a consistent interface to the hardware peripherals. The implementation of these APIs should be tailored to the specific hardware platform but should remain consistent across different platforms.

Here’s a step-by-step guide to implementing HAL in an embedded firmware project:

Identify the Hardware Peripherals: Start by identifying the hardware peripherals that your application will use, such as GPIOs, UART, I2C, SPI, ADC, timers, and more. For each peripheral, determine the specific functionalities required by the application.
Design the HAL API: Design the HAL API by defining a set of functions that abstract the functionalities of the identified peripherals. The API should be simple, consistent, and intuitive. For example, if you’re abstracting a GPIO peripheral, your HAL API might include functions like HAL_GPIO_Init(), HAL_GPIO_Write(), and HAL_GPIO_Read().

typedef enum { HAL_GPIO_PIN_RESET = 0, HAL_GPIO_PIN_SET } HAL_GPIO_PinState; void HAL_GPIO_Init(GPIO_TypeDef *GPIOx, GPIO_InitTypeDef *GPIO_Init); void HAL_GPIO_Write(GPIO_TypeDef *GPIOx, uint16_t GPIO_Pin, HAL_GPIO_PinState PinState); HAL_GPIO_PinState HAL_GPIO_Read(GPIO_TypeDef *GPIOx, uint16_t GPIO_Pin);

Implement the HAL Functions: Implement the HAL functions for the specific hardware platform. This implementation will involve direct interaction with the microcontroller’s registers and peripheral control registers. The goal is to hide this complexity from the application code.

void HAL_GPIO_Write(GPIO_TypeDef *GPIOx, uint16_t GPIO_Pin, HAL_GPIO_PinState PinState) { if (PinState == HAL_GPIO_PIN_SET) { GPIOx->BSRR = GPIO_Pin; } else { GPIOx->BRR = GPIO_Pin; } }

Test the HAL Implementation: Test the HAL implementation on the target hardware to ensure that it functions correctly. Verify that the APIs behave as expected across all the supported peripherals.
Integrate HAL with the Application Code: Replace direct hardware manipulation in your application code with the HAL APIs. This integration should be straightforward, as the application code now interacts with hardware through the HAL interface.

HAL_GPIO_Init(GPIOA, &GPIO_InitStruct); HAL_GPIO_Write(GPIOA, GPIO_PIN_5, HAL_GPIO_PIN_SET);

Abstract the Platform-Specific Details: If you plan to support multiple hardware platforms, abstract the platform-specific details within the HAL implementation. Use conditional compilation or a similar technique to ensure that the correct implementation is compiled for each platform.

#ifdef STM32F4xx void HAL_GPIO_Write(GPIO_TypeDef *GPIOx, uint16_t GPIO_Pin, HAL_GPIO_PinState PinState) { // STM32F4-specific implementation } #elif defined(STM32L4xx) void HAL_GPIO_Write(GPIO_TypeDef *GPIOx, uint16_t GPIO_Pin, HAL_GPIO_PinState PinState) { // STM32L4-specific implementation } #endif

Best Practices for Using HAL in Embedded Firmware

While implementing and using HAL in embedded firmware can offer numerous benefits, following best practices is essential to maximize its effectiveness:

Keep the HAL Interface Simple: The HAL API should be simple and easy to use. Avoid exposing too many low-level details through the API, as this can defeat the purpose of abstraction. Aim for a balance between functionality and simplicity.
Ensure Consistency Across Platforms: If you support multiple hardware platforms, ensure that the HAL API is consistent across all platforms. The application code should not need to change when switching from one platform to another.
Use Meaningful Naming Conventions: Use clear and descriptive naming conventions for HAL functions and parameters. This makes the code more readable and easier to understand.
Document the HAL API: Provide thorough documentation for the HAL API, including descriptions of each function, its parameters, and return values. This documentation will be invaluable for developers using the HAL.
Handle Errors Gracefully: Include error handling in your HAL implementation to ensure that the system behaves predictably in the event of hardware failures or misconfigurations. This can include return codes or status flags to indicate success or failure.
Optimize for Performance: While HAL abstracts the hardware, performance should not be sacrificed. Ensure that the HAL implementation is efficient and does not introduce significant overhead. This is particularly important in real-time systems where timing is critical.
Consider Future Expansion: Design the HAL with future expansion in mind. As new hardware peripherals or features are added, the HAL should be able to accommodate them without requiring significant changes to the existing code.
Leverage Existing HAL Libraries: Many microcontroller vendors provide their own HAL libraries, such as STM32’s HAL or Atmel’s ASF (Advanced Software Framework). These libraries can save development time and ensure that your HAL implementation is robust and well-tested. However, always evaluate these libraries to ensure they meet your project’s specific needs.
Mock HAL for Testing: Utilize mock implementations of the HAL API for unit testing. This allows you to test your application code in isolation from the hardware, making it easier to identify and fix bugs.
Encapsulate Hardware-Specific Code: Encapsulate all hardware-specific code within the HAL. The application code should never need to interact directly with hardware registers or peripherals. This encapsulation ensures that the application remains portable and hardware-agnostic.

Challenges and Considerations

While HAL provides numerous benefits, it also comes with challenges that must be carefully managed:

Performance Overhead: Abstraction can introduce performance overhead, particularly in systems with limited resources. Careful optimization is necessary to ensure that the HAL implementation does not compromise the system’s performance.
Complexity in Multi-Platform Support: Supporting multiple hardware platforms can increase the complexity of the HAL implementation. It requires careful design to ensure that the HAL remains consistent and maintainable across platforms.
Limited Access to Hardware Features: In some cases, HAL may limit access to certain hardware features that are not exposed through the abstraction layer. This can be mitigated by providing a mechanism to access low-level hardware features when necessary.
Learning Curve: Developers new to HAL may face a learning curve in understanding how to design and use the abstraction layer effectively. Proper training and documentation can help ease this transition.
Vendor-Specific HAL Libraries: Relying on vendor-specific HAL libraries can lead to vendor lock-in, making it difficult to switch to a different hardware platform in the future. It’s important to weigh the trade-offs between using vendor-provided HAL and developing a custom HAL.

Case Study: Implementing HAL in a Real-World Project

To illustrate the practical benefits of HAL, let’s consider a case study where HAL was implemented in a real-world embedded firmware project.

Project Background: A company developing an IoT device needed to create firmware that could be deployed on multiple microcontroller platforms, including STM32, ESP32, and NXP Kinetis. The device required interfacing with peripherals such as GPIO, UART, I2C, and SPI.

Challenge: The primary challenge was to create a single codebase that could be easily ported across different microcontroller platforms while maintaining performance and reliability.

Solution: The development team decided to implement a HAL that abstracted the hardware-specific details of each microcontroller. They designed a set of HAL APIs for each peripheral, ensuring that the APIs were consistent across all platforms. The HAL implementation for each platform was optimized to ensure minimal performance overhead.

Results: The use of HAL allowed the team to create a modular and portable codebase that could be easily deployed on different microcontroller platforms. The application code remained unchanged when switching platforms, significantly reducing development time and effort. The team also created mock implementations of the HAL APIs for unit testing, improving the overall quality and reliability of the firmware.

Conclusion

Hardware Abstraction Layers (HAL) are a powerful tool for embedded firmware engineers, enabling the creation of modular, portable, and maintainable code. By abstracting hardware-specific details, HAL allows developers to focus on the application logic, simplifies the process of porting code across different platforms, and enhances the maintainability of the firmware.

Implementing HAL requires careful design and adherence to best practices to ensure that the abstraction layer provides the desired benefits without introducing significant overhead or complexity. While HAL is not without its challenges, the advantages it offers in terms of portability, modularity, and testability make it an essential concept for any embedded firmware project.

As embedded systems continue to evolve and become more complex, the use of HAL will only become more critical. By understanding and utilizing HAL effectively, embedded engineers can create firmware that is not only robust and reliable but also scalable and future-proof.
