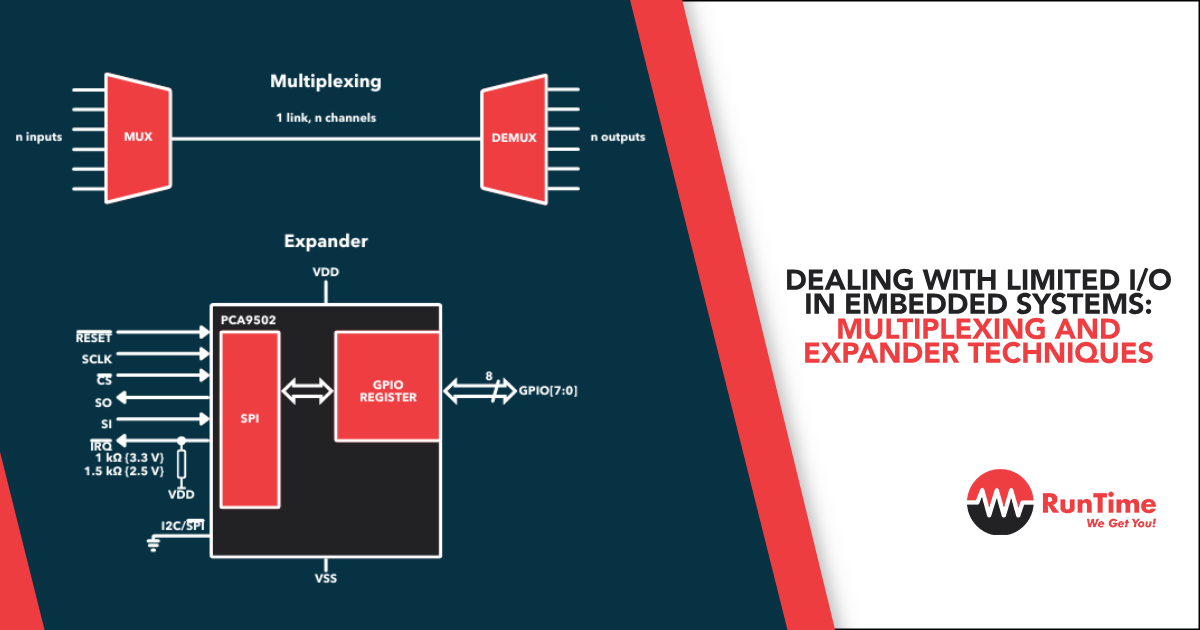

Embedded systems have revolutionized numerous industries, from consumer electronics to automotive and industrial automation. However, one of the most frequent challenges engineers face when designing these systems is dealing with a limited number of Input/Output (I/O) pins. Microcontrollers (MCUs) and Field-Programmable Gate Arrays (FPGAs), while powerful, often come with a fixed number of I/O pins, which can be quickly exhausted as the system scales in complexity.
When an application requires more I/O than is available, embedded engineers must find ways to extend the I/O capabilities without upgrading to a larger, more expensive chip. Two common solutions for overcoming limited I/O are multiplexing and using I/O expanders. In this article, we will dive into the intricacies of these techniques, exploring their use cases, advantages, and limitations, as well as offering practical guidance on their implementation.
1. The Problem of Limited I/O
Most embedded systems operate in environments where multiple sensors, actuators, displays, or communication interfaces are required. However, MCUs and FPGAs have a finite number of pins that can be used to interact with the outside world. This limitation can restrict the number of devices that can be controlled or monitored, leading to potential bottlenecks.
Typical I/O Challenges:
- Limited GPIOs: Microcontrollers may have 20–40 GPIO (General Purpose Input/Output) pins, which can quickly be consumed by buttons, LEDs, or other components.
- Peripheral conflicts: Even when I/O is available, pin multiplexing for peripherals (like UART, SPI, or I2C) can cause conflicts, reducing the number of usable pins.
- Increasing complexity: As systems scale, more sensors, displays, and actuators are required, leading to further pressure on available I/O resources.
2. Addressing the Problem with Multiplexing
Multiplexing is a technique that allows multiple signals or data streams to share the same I/O lines. Instead of dedicating one I/O pin to each device or sensor, multiplexers (MUXes) dynamically select which signal to route to the MCU at any given time.
2.1 What is Multiplexing?
Multiplexing refers to the process of combining several signals into a single channel or line, allowing multiple devices to communicate over the same I/O. There are several types of multiplexers, but the most common in embedded systems is a digital multiplexer, which uses select lines to determine which input to route to the output.
Example:
Consider an 8:1 multiplexer. In this setup, eight input signals share a single output line, with three control signals (or select lines) used to determine which of the eight inputs is routed to the output.
2.2 How to Implement Multiplexing
Multiplexers are simple devices that come in various configurations, such as 2:1, 4:1, or 8:1. The number of control lines needed is based on the number of inputs (for example, an 8:1 multiplexer requires 3 control lines). Multiplexers can be found in integrated circuits (ICs) like the 74HC151 series.
When implementing multiplexing in embedded systems, engineers must manage the control signals that select the desired input/output channel. This can be done through:
- Software control: The MCU can set the control lines through its GPIOs.
- Hardware automation: In more advanced designs, automatic selection logic can be implemented using external circuitry.
2.3 Advantages of Multiplexing
- Efficient use of I/O: With multiplexing, fewer I/O pins are needed, as multiple devices share the same pins.
- Flexibility: Multiplexing allows multiple devices or sensors to communicate with the MCU without requiring additional pins.
- Cost-effective: It avoids the need for upgrading to larger microcontrollers with more I/O pins, reducing cost.
2.4 Limitations of Multiplexing
- Speed limitations: Multiplexing can introduce latency, especially when switching between different devices or sensors. This can be problematic in time-sensitive applications.
- Control overhead: Managing the control signals adds complexity to the software and may introduce extra processing time.
- Signal integrity: Multiplexing high-speed signals can lead to cross-talk or degradation of the signal if not handled carefully.
3. I/O Expander Techniques
Another solution to deal with limited I/O is to use I/O expanders. I/O expanders are specialized integrated circuits that interface with the MCU via a communication bus (usually I2C or SPI) and provide additional GPIO pins. This effectively expands the I/O capabilities without needing to modify the core architecture of the embedded system.
3.1 What are I/O Expanders?
I/O expanders act as intermediaries between the MCU and external devices, allowing the MCU to control more I/O lines than are available on its package. The two most common interfaces for I/O expanders are I2C and SPI, both of which use relatively few MCU pins while providing access to a larger number of I/O pins.
Example:
A typical I/O expander, such as the MCP23017, provides 16 GPIO pins controlled via the I2C interface. This allows an embedded system to interact with 16 devices using only two I2C pins (SCL and SDA).
3.2 How to Implement I/O Expanders
To implement an I/O expander, you’ll need to choose the appropriate expander IC based on your requirements (number of pins, communication protocol, etc.). The process involves:
- Connecting the expander: Wiring the I/O expander to the MCU via the I2C or SPI bus.
- Writing software drivers: Developing firmware to control the expander, including configuring the I/O pins and reading or writing data from them.
- Addressing multiple expanders: For I2C-based expanders, multiple devices can be addressed on the same bus by setting unique I2C addresses for each expander.
3.3 Advantages of I/O Expanders
- Significantly increase available I/O: With I/O expanders, you can scale up the number of GPIOs to hundreds by daisy-chaining several expanders.
- Low pin usage: Using communication buses like I2C or SPI, multiple expanders can be controlled using just two or three MCU pins.
- Ease of use: Many I/O expanders come with libraries and drivers, making integration straightforward.
3.4 Limitations of I/O Expanders
- Communication overhead: Since the I/O expander communicates with the MCU via a bus, each read/write operation introduces some delay, which can affect the overall system performance in real-time applications.
- Limited speed: I/O expanders are typically slower than direct GPIO pins due to the communication overhead, making them unsuitable for high-frequency signal switching.
- More complex power management: If your system enters a low-power mode, the I/O expander may need additional consideration for power control, adding complexity to the design.
4. Choosing Between Multiplexing and I/O Expanders
Deciding whether to use multiplexing or I/O expanders largely depends on your system’s requirements. Each method has distinct advantages, so let’s break it down based on several factors:
4.1 Speed Requirements
- Multiplexing is typically faster since you are only switching between inputs/outputs using control lines. If your system requires rapid switching between multiple I/Os or real-time signal processing, multiplexing may be more appropriate.
- I/O expanders, while versatile, involve bus communication, which can slow down signal transmission. Therefore, expanders are more suited for low-speed, less time-critical applications.
4.2 Number of I/Os
- If you only need to extend your I/O count by a small margin, multiplexing may be the simpler solution. Multiplexers are ideal for applications where only a handful of extra I/O lines are needed.
- For larger expansions, I/O expanders are the preferred choice. They can add significantly more I/O lines (16, 24, or more) without requiring a corresponding increase in MCU pins.
4.3 Complexity of Implementation
- Multiplexing tends to be easier to implement in hardware but can require more complex software to manage control lines.
- I/O expanders simplify hardware design by reducing pin usage, but the software side may require developing or integrating communication protocols, making it slightly more complex.
4.4 Power Consumption
- Multiplexers are typically passive devices and consume less power than I/O expanders.
- I/O expanders, especially those connected via I2C or SPI, may increase the overall power consumption due to the need for active communication between the MCU and expander.
5. Practical Use Cases in Embedded Systems
Let’s take a look at a few real-world examples where multiplexing and I/O expander techniques have been successfully implemented.
5.1 Multiplexing in LED Matrices
In LED displays, engineers often use multiplexing to control a large array of LEDs with fewer pins. An 8×8 LED matrix, for example, requires 16 control lines if directly connected. Using multiplexers, you can control the same matrix with just 8 control lines, significantly reducing the required I/O.
5.2 I/O Expanders in Keypad Interfaces
Keypads are another common use case for I/O expanders. A 4×4 keypad requires 8 GPIO lines if connected directly to the MCU. However, with an I/O expander like the MCP23017, the same keypad can be controlled using just two MCU pins (SCL and SDA), freeing up I/O for other peripherals.
5.3 Sensor Expansion in IoT Devices
In IoT applications, where multiple environmental sensors are deployed, the need for additional I/O pins quickly becomes apparent. Using I/O expanders allows IoT systems to scale efficiently without requiring additional microcontroller pins. This is particularly useful in low-power, battery-operated devices where the number of pins must be kept to a minimum.
6. Future Trends in I/O Management
As embedded systems continue to evolve, the demand for innovative solutions to manage limited I/O resources will increase. Some trends we expect to see include:
- Smarter multiplexing techniques: Integration of more intelligent multiplexing with built-in logic for managing different signal types.
- I/O expanders with more functionality: New I/O expanders with additional features, such as integrated ADCs (Analog-to-Digital Converters) or PWM (Pulse Width Modulation) controllers.
- FPGAs with dynamic I/O reconfiguration: In high-end systems, FPGAs may offer dynamic I/O reconfiguration, allowing engineers to reassign I/O pins based on the system’s operational mode.
Conclusion
Dealing with limited I/O in embedded systems is a challenge every engineer encounters. Multiplexing and I/O expander techniques provide practical solutions for extending the I/O capabilities of microcontrollers and FPGAs. Choosing between these methods depends on several factors, including speed requirements, the number of I/O pins needed, and the complexity of implementation.
Multiplexing is ideal for applications where speed is crucial and I/O extension needs are moderate, while I/O expanders offer greater scalability for systems requiring large numbers of additional I/O pins. Understanding when and how to use each of these techniques will allow embedded engineers to design more efficient and cost-effective systems. By mastering these strategies, you can unlock the full potential of your embedded hardware, even when faced with seemingly insurmountable I/O limitations.
